Django REST 框架详解 08 | 认证组件

一、认证组件

1. 分析源码

通过分析源码了解认证组件的方法调用过程

APIView 的 dispatch 中使用 initial 方法实现初始化并进行三大认证，第一步就是认证组件

rest_framework/views.py

class APIView(View):
    # ...
    def initial(self, request, *args, **kwargs):
        # ...
        # 认证组件：校验用户
        # 这里调用 perform_authentication 实现认证
        self.perform_authentication(request)
        # 权限组件：校验用户权限
        self.check_permissions(request)
        # 频率组件：限制视图接口被访问次数
        self.check_throttles(request)

    def perform_authentication(self, request):
        """
        Perform authentication on the incoming request.

        Note that if you override this and simply 'pass', then authentication
        will instead be performed lazily, the first time either
        `request.user` or `request.auth` is accessed.
        """
        class APIView(View):
    # ...
    def initial(self, request, *args, **kwargs):
        # ...
        # 认证组件：校验用户
        # 这里调用 perform_authentication 实现认证
        self.perform_authentication(request)
        # 权限组件：校验用户权限
        self.check_permissions(request)
        # 频率组件：限制视图接口被访问次数
        self.check_throttles(request)

    def perform_authentication(self, request):
        """
        Perform authentication on the incoming request.

        Note that if you override this and simply 'pass', then authentication
        will instead be performed lazily, the first time either
        `request.user` or `request.auth` is accessed.
        """
        # 去 request 中调用 user 方法属性
        request.user

request.user 去 request 中找 user 方法属性，找到认证方法实现过程

rest_framework/request.py

class Request:
    @property
    def user(self):
        """
        Returns the user associated with the current request, as authenticated
        by the authentication classes provided to the request.
        """
        # 属性来源是 _属性名
        if not hasattr(self, '_user'):
            # 回收错误信息
            with wrap_attributeerrors():
                # 没用户，认证处用户
                self._authenticate()
        # 有用户，直接返回用户
        return self._user

    # 认证方法
    def _authenticate(self):
        """
        Attempt to authenticate the request using each authentication instance
        in turn.
        """

        # 遍历拿到认证器，进行认证
        # self.authenticators，配置的一堆认证类产生的认证类对象组成的 list
        for authenticator in self.authenticators:
            # 该方法被 try 包裹，代表该方法会抛异常，抛异常代表认证失败
            try:
                # 认证器（对象）调用认证方法 authenticate（认证类对象self，request 请求对象）
                # 返回值：登录的用户与认证的信息组成的 tuple
                user_auth_tuple = authenticator.authenticate(self)
            except exceptions.APIException:
                # 非法用户
                self._not_authenticated()
                raise

			# 处理返回值
            if user_auth_tuple is not None:
                self._authenticator = authenticator
                # 合法用户
                # 如果有返回值，就将登录用户与登录认证分别保存到 request.user request.auth
                self.user, self.auth = user_auth_tuple
                return

		# 游客
        class Request:
    @property
    def user(self):
        """
        Returns the user associated with the current request, as authenticated
        by the authentication classes provided to the request.
        """
        # 属性来源是 _属性名
        if not hasattr(self, '_user'):
            # 回收错误信息
            with wrap_attributeerrors():
                # 没用户，认证处用户
                self._authenticate()
        # 有用户，直接返回用户
        return self._user

    # 认证方法
    def _authenticate(self):
        """
        Attempt to authenticate the request using each authentication instance
        in turn.
        """

        # 遍历拿到认证器，进行认证
        # self.authenticators，配置的一堆认证类产生的认证类对象组成的 list
        for authenticator in self.authenticators:
            # 该方法被 try 包裹，代表该方法会抛异常，抛异常代表认证失败
            try:
                # 认证器（对象）调用认证方法 authenticate（认证类对象self，request 请求对象）
                # 返回值：登录的用户与认证的信息组成的 tuple
                user_auth_tuple = authenticator.authenticate(self)
            except exceptions.APIException:
                # 非法用户
                self._not_authenticated()
                raise

			# 处理返回值
            if user_auth_tuple is not None:
                self._authenticator = authenticator
                # 合法用户
                # 如果有返回值，就将登录用户与登录认证分别保存到 request.user request.auth
                self.user, self.auth = user_auth_tuple
                return

		# 游客
        # 如果返回值 user_auth_tuple，代表认证通过，但是没有登录用户和登录认证信息，代表游客
        self._not_authenticated()

寻找 authenticators 如何定义

rest_framework/views.py

class APIView(View):

    # The following policies may be set at either globally, or per-view.
    # 配置认证类
    authentication_classes = api_settings.DEFAULT_AUTHENTICATION_CLASSES

    def dispatch(self, request, *args, **kwargs):
        """
        `.dispatch()` is pretty much the same as Django's regular dispatch,
        but with extra hooks for startup, finalize, and exception handling.
        """
        self.args = args
        self.kwargs = kwargs
        # 请求模块（解析模块）
        request = self.initialize_request(request, *args, **kwargs)
        self.request = request
        self.headers = self.default_response_headers  # deprecate?

        try:
            # 进入三大认证模块
            self.initial(request, *args, **kwargs)

            # Get the appropriate handler method
            if request.method.lower() in self.http_method_names:
                handler = getattr(self, request.method.lower(),
                                  self.http_method_not_allowed)
            else:
                handler = self.http_method_not_allowed

            response = handler(request, *args, **kwargs)

        except Exception as exc:
            response = self.handle_exception(exc)

        self.response = self.finalize_response(request, response, *args, **kwargs)
        return self.response


    def initialize_request(self, request, *args, **kwargs):
        """
        Returns the initial request object.
        """
        parser_context = self.get_parser_context(request)

        return Request(
            request,
            # 获取解析类
            parsers=self.get_parsers(),
            # 获取认证器
            authenticators=self.get_authenticators(),
            negotiator=self.get_content_negotiator(),
            parser_context=parser_context
        )

        # 获取认证器
        def get_authenticators(self):
        """
        Instantiates and returns the list of authenticators that this view can use.
        """
        # 实例化一堆认证类对象
        return [auth() for auth class APIView(View):

    # The following policies may be set at either globally, or per-view.
    # 配置认证类
    authentication_classes = api_settings.DEFAULT_AUTHENTICATION_CLASSES

    def dispatch(self, request, *args, **kwargs):
        """
        `.dispatch()` is pretty much the same as Django's regular dispatch,
        but with extra hooks for startup, finalize, and exception handling.
        """
        self.args = args
        self.kwargs = kwargs
        # 请求模块（解析模块）
        request = self.initialize_request(request, *args, **kwargs)
        self.request = request
        self.headers = self.default_response_headers  # deprecate?

        try:
            # 进入三大认证模块
            self.initial(request, *args, **kwargs)

            # Get the appropriate handler method
            if request.method.lower() in self.http_method_names:
                handler = getattr(self, request.method.lower(),
                                  self.http_method_not_allowed)
            else:
                handler = self.http_method_not_allowed

            response = handler(request, *args, **kwargs)

        except Exception as exc:
            response = self.handle_exception(exc)

        self.response = self.finalize_response(request, response, *args, **kwargs)
        return self.response


    def initialize_request(self, request, *args, **kwargs):
        """
        Returns the initial request object.
        """
        parser_context = self.get_parser_context(request)

        return Request(
            request,
            # 获取解析类
            parsers=self.get_parsers(),
            # 获取认证器
            authenticators=self.get_authenticators(),
            negotiator=self.get_content_negotiator(),
            parser_context=parser_context
        )

        # 获取认证器
        def get_authenticators(self):
        """
        Instantiates and returns the list of authenticators that this view can use.
        """
        # 实例化一堆认证类对象
        return [auth() for auth in self.authentication_classes]

了解到认证器是通过一系列人证类对象实例化后定义

我们进去 SessionAuthentication 查看默认配置的认证类的实现

class SessionAuthentication(BaseAuthentication):
    """
    Use Django's session framework for authentication.
    """

    def authenticate(self, request):
        """
        Returns a `User` if the request session currently has a logged in user.
        Otherwise returns `None`.
        """

        # 得到用户
        user = getattr(request._request, 'user', None)

        # Unauthenticated, CSRF validation not required
        if not user or not user.is_active:
            # 没有解析出，代表游客
            return None

        # 解析出用户后，要重新启用 csrf 认证
        # 如果 csrf 认证失败，就出现异常，认证为非法用户
        self.enforce_csrf(request)

        # CSRF passed with authenticated user
        # 认证为合法用户，没有返回认证信息
        return (user, None)

    class BasicAuthentication(BaseAuthentication):
    """
    HTTP Basic authentication against username/password.
    """
    www_authenticate_realm = 'api'

    def authenticate(self, request):
        """
        Returns a `User` if a correct username and password have been supplied
        using HTTP Basic authentication.  Otherwise returns `None`.
        """
        # 获取认证信息：该认证信息是两段式（basic 认证字符串）
        auth = get_authorization_header(request).split()

        # 没有认证信息，认证为游客
        if not auth or auth[0].lower() != b'basic':
            return None

        # 有认证信息，格式错误，认证为非法用户
        if len(auth) == 1:
            msg = _('Invalid basic header. No credentials provided.')
            raise exceptions.AuthenticationFailed(msg)
        elif len(auth) > 2:
            msg = _('Invalid basic header. Credentials string should not contain spaces.')
            raise exceptions.AuthenticationFailed(msg)

        try:
            auth_parts = base64.b64decode(auth[1]).decode(HTTP_HEADER_ENCODING).partition(':')
        except (TypeError, UnicodeDecodeError, binascii.Error):
            msg = _('Invalid basic header. Credentials not correctly base64 encoded.')
            raise exceptions.AuthenticationFailed(msg)

        userid, password = auth_parts[0], auth_parts[2]
        # 认证信息处理出用户主键和密码，进一步得到用户对象
        return self.authenticate_credentials(userid, password, request)

    def authenticate_credentials(self, userid, password, request=None):
        """
        Authenticate the userid and password against username and password
        with optional request for context.
        """
        credentials = {
            get_user_model().USERNAME_FIELD: userid,
            'password': password
        }
        user = authenticate(request=request, **credentials)

        # 如果没有该用户或非活跃用户，认证为非法用户
        if user is None:
            raise exceptions.AuthenticationFailed(_('Invalid username/password.'))

        if not user.is_active:
            raise exceptions.AuthenticationFailed(_('User inactive or deleted.'))

        return (user, None)

    def authenticate_header(self, request):
        return class SessionAuthentication(BaseAuthentication):
    """
    Use Django's session framework for authentication.
    """

    def authenticate(self, request):
        """
        Returns a `User` if the request session currently has a logged in user.
        Otherwise returns `None`.
        """

        # 得到用户
        user = getattr(request._request, 'user', None)

        # Unauthenticated, CSRF validation not required
        if not user or not user.is_active:
            # 没有解析出，代表游客
            return None

        # 解析出用户后，要重新启用 csrf 认证
        # 如果 csrf 认证失败，就出现异常，认证为非法用户
        self.enforce_csrf(request)

        # CSRF passed with authenticated user
        # 认证为合法用户，没有返回认证信息
        return (user, None)

    class BasicAuthentication(BaseAuthentication):
    """
    HTTP Basic authentication against username/password.
    """
    www_authenticate_realm = 'api'

    def authenticate(self, request):
        """
        Returns a `User` if a correct username and password have been supplied
        using HTTP Basic authentication.  Otherwise returns `None`.
        """
        # 获取认证信息：该认证信息是两段式（basic 认证字符串）
        auth = get_authorization_header(request).split()

        # 没有认证信息，认证为游客
        if not auth or auth[0].lower() != b'basic':
            return None

        # 有认证信息，格式错误，认证为非法用户
        if len(auth) == 1:
            msg = _('Invalid basic header. No credentials provided.')
            raise exceptions.AuthenticationFailed(msg)
        elif len(auth) > 2:
            msg = _('Invalid basic header. Credentials string should not contain spaces.')
            raise exceptions.AuthenticationFailed(msg)

        try:
            auth_parts = base64.b64decode(auth[1]).decode(HTTP_HEADER_ENCODING).partition(':')
        except (TypeError, UnicodeDecodeError, binascii.Error):
            msg = _('Invalid basic header. Credentials not correctly base64 encoded.')
            raise exceptions.AuthenticationFailed(msg)

        userid, password = auth_parts[0], auth_parts[2]
        # 认证信息处理出用户主键和密码，进一步得到用户对象
        return self.authenticate_credentials(userid, password, request)

    def authenticate_credentials(self, userid, password, request=None):
        """
        Authenticate the userid and password against username and password
        with optional request for context.
        """
        credentials = {
            get_user_model().USERNAME_FIELD: userid,
            'password': password
        }
        user = authenticate(request=request, **credentials)

        # 如果没有该用户或非活跃用户，认证为非法用户
        if user is None:
            raise exceptions.AuthenticationFailed(_('Invalid username/password.'))

        if not user.is_active:
            raise exceptions.AuthenticationFailed(_('User inactive or deleted.'))

        return (user, None)

    def authenticate_header(self, request):
        return 'Basic realm="%s"' % self.www_authenticate_realm

我们现在查看默认认证类配置定义位置

rest_framework/setting.py

DEFAULTS = {
    # ...
    # 默认认证类配置
    'DEFAULT_AUTHENTICATION_CLASSES': [
        'rest_framework.authentication.SessionAuthentication',
        DEFAULTS = {
    # ...
    # 默认认证类配置
    'DEFAULT_AUTHENTICATION_CLASSES': [
        'rest_framework.authentication.SessionAuthentication',
        'rest_framework.authentication.BasicAuthentication'
    ],
}

根据这个，现在就可以自定义项目配置文件

2. 全局配置认证

编写自己项目的settings.py

# 全局局部配置
REST_FRAMEWORK = {
    # ...
    # 配置默认认证类
    'DEFAULT_AUTHENTICATION_CLASSES': [
        'rest_framework.authentication.SessionAuthentication',
        # 全局局部配置
REST_FRAMEWORK = {
    # ...
    # 配置默认认证类
    'DEFAULT_AUTHENTICATION_CLASSES': [
        'rest_framework.authentication.SessionAuthentication',
        'rest_framework.authentication.BasicAuthentication'
    ],
}

二、自定义认证类

可以看到以上默认的认证类，所有的规则都是固定的。尤其是做session认证时，会调用csrf，但是对于前后端分离的情况，这种规则并不友好。

1. 代码实现

• 继承 BasicAuthentication

• 重写 authenticate 方法

• 实现根据自定义认证规则，确定是否有权限

• 认证规则：

  •   游客：无认证信息，返回 None


  •   非法用户：有认证信息，认证失败，抛异常


  •   合法用户：有认证信息，认证成功，返回元组


• 进行全局或局部配置

  • 全局：配置文件 settings.py
  • 局部：在视图类 import

• 前台在请求头携带认证信息，且默认规范用 Authorization 字段携带认证信息

authentications.py

from rest_framework.authentication import BasicAuthentication
from rest_framework.exceptions import AuthenticationFailed

from api import models


class MyAuthentication(BasicAuthentication):
    # 重新 authenticate 方法，自定义认证规则
    def authenticate(self, request):
        # 认证规则要基于条件：
        #       游客：无认证信息，返回 None
        #       非法用户：有认证信息，认证失败，抛异常
        #       合法用户：有认证信息，认证成功，返回元组
        # 前台在请求头携带认证信息，且默认规范用 Authorization 字段携带认证信息
        # 后端固定在请求对象的 META字典中 HTTP_AUTHORIZATION 获取
        auth = request.META.get('HTTP_AUTHORIZATION', None
                                )

        # 游客认证
        if auth is None:
            return None

        # 设置认证字段规则（两端式）：“auth 认证字符串”
        auth_list = auth.split()

        # 校验合法还是非法用户
        if len(auth_list) != 2 or auth_list[0].lower() != 'auth':
            raise AuthenticationFailed('The authentication information is incorrect! Illegal user')

        # 合法的用户需要进一步从 auth_list[1] 解析
        # 假设一种情况：信息为 abc.123.xyz 就可以解析 admin 用户
        # 实际开发时，该逻辑一定需要校验用户
        if auth_list[1] != 'abc.123.xyz':
            raise AuthenticationFailed('User verification failed! Illegal user')

        user = models.User.objects.filter(username='baimoc').first()

        if not user:
            raise AuthenticationFailed('User data is incorrect! Illegal user')

        return (user, from rest_framework.authentication import BasicAuthentication
from rest_framework.exceptions import AuthenticationFailed

from api import models


class MyAuthentication(BasicAuthentication):
    # 重新 authenticate 方法，自定义认证规则
    def authenticate(self, request):
        # 认证规则要基于条件：
        #       游客：无认证信息，返回 None
        #       非法用户：有认证信息，认证失败，抛异常
        #       合法用户：有认证信息，认证成功，返回元组
        # 前台在请求头携带认证信息，且默认规范用 Authorization 字段携带认证信息
        # 后端固定在请求对象的 META字典中 HTTP_AUTHORIZATION 获取
        auth = request.META.get('HTTP_AUTHORIZATION', None
                                )

        # 游客认证
        if auth is None:
            return None

        # 设置认证字段规则（两端式）：“auth 认证字符串”
        auth_list = auth.split()

        # 校验合法还是非法用户
        if len(auth_list) != 2 or auth_list[0].lower() != 'auth':
            raise AuthenticationFailed('The authentication information is incorrect! Illegal user')

        # 合法的用户需要进一步从 auth_list[1] 解析
        # 假设一种情况：信息为 abc.123.xyz 就可以解析 admin 用户
        # 实际开发时，该逻辑一定需要校验用户
        if auth_list[1] != 'abc.123.xyz':
            raise AuthenticationFailed('User verification failed! Illegal user')

        user = models.User.objects.filter(username='baimoc').first()

        if not user:
            raise AuthenticationFailed('User data is incorrect! Illegal user')

        return (user, None)

settings.py

# 全局局部配置
REST_FRAMEWORK = {
    'DEFAULT_AUTHENTICATION_CLASSES': [
        # 全局局部配置
REST_FRAMEWORK = {
    'DEFAULT_AUTHENTICATION_CLASSES': [
        'api.authentications.MyAuthentication'
    ],
}

views.py

from rest_framework.views import APIView
from rest_framework.generics import GenericAPIView
from rest_framework.viewsets import GenericViewSet, ViewSet

from utils.response import APIResponse


class LoginView(APIView):
    def get(self, request, *args, **kwargs):
        # 如果认证通过，request.user 就一定有值
        # 游客：AnonymousUser
        # 用户：User
        return APIResponse(0, from rest_framework.views import APIView
from rest_framework.generics import GenericAPIView
from rest_framework.viewsets import GenericViewSet, ViewSet

from utils.response import APIResponse


class LoginView(APIView):
    def get(self, request, *args, **kwargs):
        # 如果认证通过，request.user 就一定有值
        # 游客：AnonymousUser
        # 用户：User
        return APIResponse(0, 'Login successful')

urls.py

from django.conf.urls import url
from api import views

urlpatterns = [
    url(from django.conf.urls import url
from api import views

urlpatterns = [
    url(r'^login/$', views.LoginView.as_view()),
]

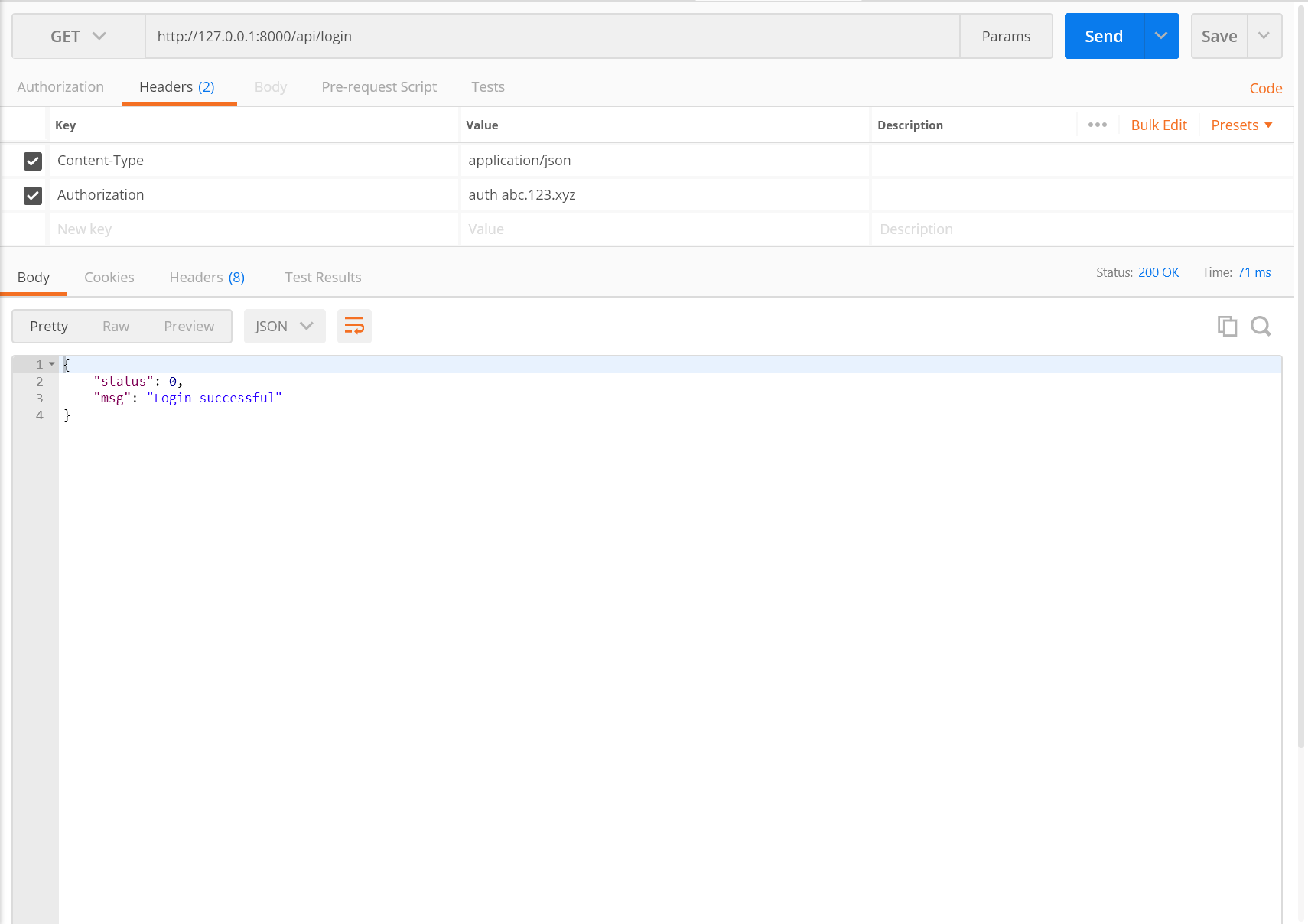

2. 接口测试
